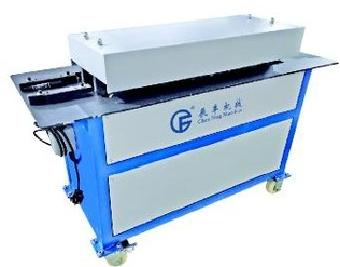

Pittsburgh Lock Forming Machine
Pittsburgh lock machines are the most widely used machines in manufacturing ducts.They boast a variety of distinctive features to meet buyer's requirement by replacing rolls.They are light and easy to move.They are suitable for being used on site.LC-12 can process sheet metal of 0.5-1.2mm thickness.LC-15 can process sheet metal of 0.7-1.5 thickness.

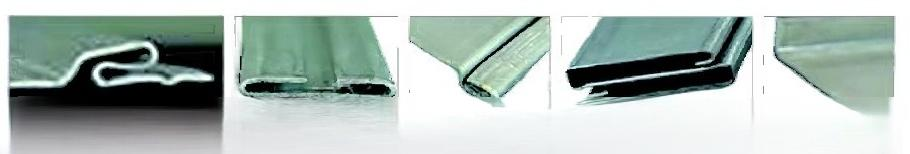

Multi-function Pitsburgh lock machine. If you have standard main machine, you can replace or configure the
required rollwith the help of the list below:
-+
Contact Us

编。号

成型形状

Shape

名 称

Name

加 工 片 厚

Capacity(mm)

用 料

Specification(mm)

尺 寸

Size(mm)

19B1201

L=

东洋骨    Pittsburgh Lock Rolls

勾 骨    Seam Cleat

0.5-1.2

0.5-1.2

26

9

13.2

13.2

19B1202


之字骨   Standng Seam Rolls

直角骨   Right Angle Rolls

0.5-1.2

0.5-1.2

26

6-13

14

13

19B1203

一     >

插 条     Drive Cleat Rolls

0.5-0.8

48

25

19B1204


插 条     Drve Cleat Rolls

0.5-0.8

54

28

19B1205


驳 骨    Double Seam Rolls

0.5-1.2

18

10

19B1206


驳 骨    Double Seam Rolls

0.5-1.2

4-8

4-8

19B1211


直角弯    Round Right Cleat

0.5-1.2

8

8

19M1201


东洋骨   Pitsburgh Lock rolls

勾 骨    Seam Ceat

0.5-1.2 0.5-1.2

26

9

13.2 13.2

19M1204


插 条     Drive Cleat Rolls

0.5-0.8

54

28

19M1209


S  骨     S"Cleat

0.4-0.8

92

28

19M1210


直角骨    Right Angle Flange

鸡冠骨   Standng Seam

T 骨     T-Connection

0.5-1.0 0.5-1.0

0.5-1.0

6-14

26

40

6-14

14

14

19M1214


T插条    T-Connection

0.4-08

80

28

19B1501


东洋骨   Pitsburgh Lock Rolls

勾 骨    Seam Cleat

0.7-1.5 0.7-1.5

29

10

14.5 14.5

19B1502

口

之字骨   Standng Seam Rolls

直角骨    Right Angle Flange

0.7-1.5 0.7-1,5

32

8-16

17

16

19B1504


插 条    Drve Cleat Rolls

0.5-1

54

28

19B1505


驳 骨    double seam rolls

0.7-1.5

10

16

19B1508


驳 骨    Double seam rolls

0.7-1.5

9

14

19B1511

日

直角弯   Round Right Cleat

0.7-1.5

11

11




编号 No

机

加工板厚(mm) Capacity(mm)

速度(m/min Speed(m/min

T蒋区

Motor(Kw )

T乍    点庶(m

Worktap点Heght

成轴

辘奢数 (set)

磊画

外形尺寸

Dimension mm(LWH)

9430000

LC-10

0.3~1.0 B<0.8

5.8

1.5

760

6

2

183

900×530×880

9430001

LC-10R


5.8

1.5

760

6

2

195

900×530×1020

9430020

LC-10B


5.8

1.5

760

6

2

183

900×530×880

9430021

LC-10BR


5.8

1.5

760

6

2

195

900×530×1020

9430030

LC-10C


5.8

1.5

760

6

2

183

900×530×880

9430100

LC-12

0.5-1.2 B<0.8

6

1.5

760

7

2

220

1040×570×880

9430101

LC-12R


6

1.5

760

7

2

235

1040×570×1050

9430120

LC-12B


6

1.5

760

7

2

220

1040×570×880

9430121

LC-12BR


6

1.5

760

7

2

235

1040×570×1050

9430130

LC-12C


6

1.5

760

7

2

220

1040×570×880

9430140

LC-12D


6

1.5

760

7

3

230

1040×570×880

9430141

LC-12DR


6

1.5

760

7

3

245

040×570×1050

9430150

LC-12M


5.2

2.2

900

8

3

360

1520×630×1010

9430160

LC-12V


18

4

860

9

2

480

650×680×1000

9430200

LC-15

0.7~1.5 B<1.0

7.6

2.2

900

7

2

280

1140×600×1000

9430201

LC-15R


7.6

2.2

900

7

2

300

1140×600×1160

9430220

LC-15B


7.6

2.2

900

7

2

280

1140×600×1000

9430221

LC-15BR


7.6

2.2

900

7

2

300

1140×600×1160

9430230

LC-15C


7.6

2.2

900


2

280

1140×600×1000

9430240

LC-15D


7.6

2.2

900

7

3

290

1140×600×1000

9430241

LC-15DR


7.6

22

900

7

3

310

1140×600×1160

9430250

LC-15M


5.2

2.2

900

7

3

360

1520×630×1010

9430300

LC-20

1.0-2.0

7.4

3

860

9


435

1650×680×1000

9430400

R10

0.5~1.0

5

1.1

800

1



670×600×900

9430420

R15

0.7~1.5

7

1.1

800


1


670×600×920


Quality and After-sale Assurance

Our company has a modern scientific research center, advanced production equipment and industry talents. Through continuous innovation, it has always been in the leading position in the industry. The Kunjiu team continues to meet the needs of the market through joint efforts.

We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.

we will provide service on installation and commissioning , no worry about after sales.

All equipment is delivered after passing the quality inspection and debugging.

Trade Term

Price Terms: EXW, FOB, CIF
Payment Terms: 30% as deposit, and 70% before delivery
Lead Time: 20-90 days depends on machine size and quantities
