efficiency(about 20-25 seconds /piece).It combines multiple functions into one,(1)biting machine bite jointangle
unilateral(orthogonal bone),biting machine bite joint angle(eastem bone);(2)can complete angle steel flange,common plate flange,insert Aticles,(3)can directly complete the flat type,L-shaped right-angled edge,and the mouth-shaped type;(4)can punch the support hole and the flange edge to punch 9*15 waist-shaped hole.(5)It can process 0.5-

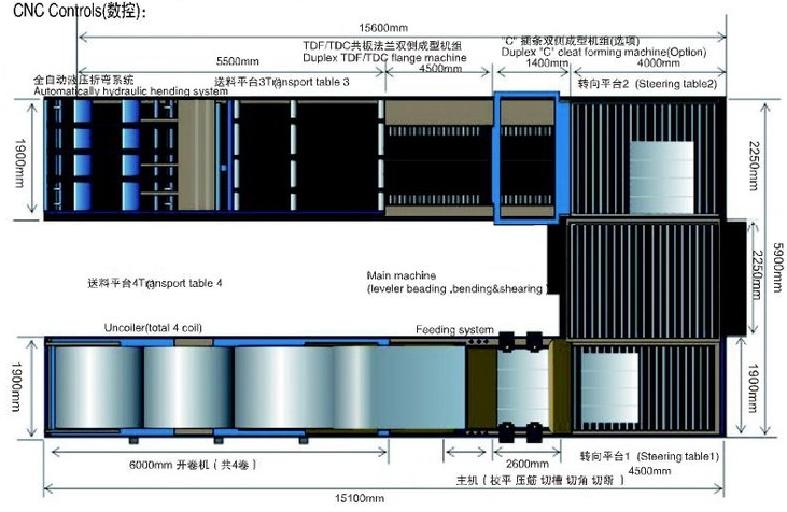

1.5mm galvanized sheet,and 304 stainless steel can be processed to 0.5-1.2mm.Chenfeng duct 8 line is a new automatic air duct production line with complete functions,excellent performance and high degree of automation.The production efficiency is significantly improved compared with other similar equipment,from the unwinding of sheet material to the folding of the last duct.Automate.
Technical Data
① Coil Thickness(材料厚度范围):0.5-1.5mm 镀锌板，0.5-1.2mm304 不锈钢
0.5-1.5mm galvanized sheet,0.5-1.2mm304 stainless steel. 2Width(板料宽度):1000-1250mm.1500mm Option为选择
3Length Tolerances(长度精度):±0.5mm
④Diagonal Tolerances(对角线精度):±0.8mm
⑤Processing Speed(流水线速度):最大到(Max)14MMin 6Driven (驱动):全液压(Hydraulic drven)
ZPower(总功率):36Kw
⑧Beading Section(压筋):标准型式，符合风管制作工艺(Standards)
Notching and Hole Punching(切槽切角):专业设计的组合模具用于风管切槽切角，适合
按扣式，联合角式咬口等风管制作工艺Combination of professional mold design for duct notching, suitable for BPSL PitsburghLock production process.
型号 加工厚度(mm) 尺寸精度(mm) 最大速度(M/Min) 卷宽(mm)
CF-8-1300/1600 0.5-1.5镀锌板 ±0.5 12m/min 1250/1500
0.5-1.2304不锈钢
Quality and After-sale Assurance
Our company has a modern scientific research center, advanced production equipment and industry talents. Through continuous innovation, it has always been in the leading position in the industry. The Kunjiu team continues to meet the needs of the market through joint efforts.
We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.
we will provide service on installation and commissioning , no worry about after sales.
All equipment is delivered after passing the quality inspection and debugging.
Trade Term
Price Terms: EXW, FOB, CIF
Payment Terms: 30% as deposit, and 70% before delivery
Lead Time: 20-90 days depends on machine size and quantities
